Introduction
A copper tube order often starts with one simple request: “Please quote 1/4-inch copper tube.” That line is not enough to protect a refrigeration system, a heat exchanger, or a process skid. Diameter, wall thickness, temper, alloy, cleanliness, tube form, standard, and packing all change the result. We have seen projects lose weeks because a buyer received a plumbing tube when the design called for a dehydrated refrigeration tube. We have also seen a small wall-thickness change stop vibration cracks in a rooftop unit. This guide explains copper tube types from the factory floor so B2B buyers can specify the right product before requesting a quotation.
Executive Summary
- Use ASTM B280 or an equivalent refrigeration specification for refrigerant lines; specify clean, dehydrated, capped tube.
- Choose annealed coils when installers need tight bends and hard-drawn straight lengths when the system needs stiffness and accurate routing.
- For industrial service, confirm alloy, pressure, temperature, corrosion exposure, and joining method before selecting a copper tube.
- Ask every supplier for dimensions, chemical composition, mechanical results, eddy-current or hydrostatic inspection, and batch traceability.
What Are the Main Copper Tube Types?
Seamless Copper Tubes for Pressure Systems
Seamless copper tube starts from a cast billet that is pierced and extruded before several drawing passes reduce the diameter. The process avoids a longitudinal weld and gives the tube a consistent pressure boundary. HVAC, refrigeration, and many industrial buyers use seamless tube because it handles repeated thermal cycling and brazed joints with predictable behavior. The correct product still depends on temper and wall thickness; seamless construction alone does not define a complete specification.

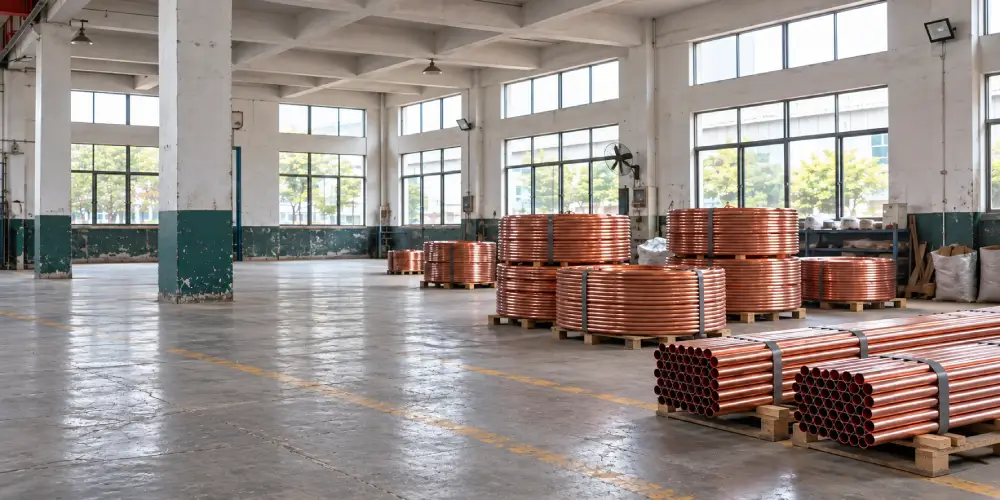

Straight Lengths and Pancake Coils
Straight lengths make sense on factory assembly lines where a tube bender or automatic cutter repeats the same geometry. Pancake coils reduce joints on long runs and help field technicians route lines around equipment. We normally ship coils with controlled ovality so a flare or brazed joint remains round after cutting. Tell the manufacturer the required coil weight, inner diameter, and maximum piece length because these details affect handling and freight.
Copper Tube Standards and Specifications
A purchase order should name the governing standard, size system, temper, and inspection level. ASTM B88 covers many water and plumbing applications, while ASTM B280 is widely used for air-conditioning and refrigeration tubes. EN 12735-1 is common in European refrigeration projects. Standards define chemistry, dimensions, tolerances, and tests, but the buyer must still state whether the tube needs capped ends, nitrogen preservation, or special surface limits.
How Temper Affects Installation
Temper describes how much the tube has been annealed or cold-worked. Soft annealed tube bends with hand tools and accepts tight radii, while hard-drawn tube keeps a straight route and resists dents during assembly. Half-hard tube sits between those choices. A buyer who specifies only “copper tube” leaves the installer to guess, and that guess can create kinks, extra joints, or a poor fit at the equipment connection.
How Do HVAC Copper Tube Types Differ
Copper Tubes for Air Conditioning Lines
Split air-conditioning systems commonly use small-diameter copper pairs for liquid and suction lines. The tube must tolerate refrigerant pressure, vibration from the compressor, and repeated start-stop cycles. For field work, annealed coils save time because technicians can bend them around corners without adding elbows. For packaged units, hard-drawn straight lengths give cleaner routing and faster brazing on a production bench.
Refrigeration Grade Copper Tubes
The refrigeration tube receives extra cleaning and dehydration before it leaves the mill. We cap both ends after testing to prevent dust and moisture from entering during ocean freight. A tube can look bright outside and still carry residue inside, so the buyer should request an internal cleanliness limit and a moisture requirement. This is one of the clearest differences between a general plumbing tube and a refrigeration-grade product.
ASTM B280 Copper Tubes for Refrigerants
ASTM B280 covers seamless copper tube for air-conditioning and refrigeration field service. Buyers usually pair the standard with soft or hard temper, a size range, and a wall-thickness table. When a distributor stocks B280 tube, clear labeling reduces mix-ups at the counter. Nexnice production files record the heat number, drawing route, and final inspection so each bundle can be traced back to its material batch.
Choosing Soft or Hard Copper Tubes
Choose soft coil when the job has many bends, limited access, or long uninterrupted runs. Choose hard straight tube when supports are frequent, and the layout uses fixed elbows. Soft tubes need careful packaging because a crushed coil creates installation waste. Hard tubes need corner protection and stable pallets so the ends do not become oval during loading.
Which Copper Tubes Work Best for Refrigeration
Dehydrated and Capped Refrigeration Tubes
Moisture reacts with refrigerant oil and can form acids that attack motor windings and valves. We run a controlled drying cycle, verify the tube condition, and cap the ends immediately after inspection. Buyers should state whether they need sealed plastic caps, nitrogen-filled packaging, or both. These small packing details protect a large investment in compressors and controls.
Oil Compatibility and Internal Cleanliness
Modern systems may use POE oil, mineral oil, or another lubricant. Residual drawing oil inside the tube can change how the lubricant behaves, so cleaning chemistry and rinse control matter. Ask the supplier how internal residue is measured and what sampling plan applies. A short certificate with a batch number is more useful than a general statement that the tube is clean.
Tube Wall Thickness for Refrigerant Pressure
Pressure design starts with refrigerant, operating temperature, outside diameter, and allowable stress. A thicker wall adds safety margin and improves resistance to vibration, but it also costs more and transfers heat differently during brazing. We help buyers compare the design pressure with the selected wall rather than using a diameter-only shortcut.
Preventing Moisture and Contamination
Keep caps on until the moment of cutting. Store cartons off the floor and away from welding fumes, rain, and chemical vapors. During installation, purge with dry nitrogen while brazing to limit oxide scale. These handling steps belong in the purchase and installation instructions because a clean tube can be contaminated after delivery.
What Copper Tubes Are Used in Industrial Applications
Copper Tubes for Heat Exchangers
Heat exchangers use copper because its thermal conductivity moves heat quickly through a relatively thin wall. The tube may be plain, internally enhanced, or alloyed with elements that improve strength. Engineers should review water chemistry, velocity, fouling risk, and expansion method. A tube that performs well in clean chilled water may fail in seawater or a chemical stream.
Copper Tubes for Process Piping
Industrial process lines often need straight tubes with tighter dimensional control than a field-installed HVAC line. The drawing schedule affects roundness, surface finish, and consistency from lot to lot. We recommend a sample fit-up with the customer’s fittings before mass production when the project uses orbital welding or automated expansion.
Copper Tubes for Hydraulic and Pneumatic Systems
Copper tube works in selected low- and medium-pressure hydraulic or pneumatic circuits where corrosion resistance and easy joining matter. The design must confirm pressure, pulsation, fluid compatibility, and support spacing. For higher mechanical loads, a copper alloy or another metal may be a better choice. The supplier should never make that decision from tube size alone.
Copper Tubes for Gas and Chemical Service
Gas and chemical service requires a compatibility review. Ammonia, certain acids, and high-sulfur environments can rule out standard copper. We ask for the medium, concentration, temperature, and cleaning method before recommending an alloy. This short review prevents a low-price tube from becoming a shutdown event.
Selecting Copper Alloys for Industrial Duty
Phosphorus-deoxidized copper is common for brazing and refrigeration. Copper-nickel alloys offer stronger resistance in marine water. Brass and other copper alloys can improve mechanical strength or wear behavior. The right alloy depends on the fluid and the joining process, so the material grade belongs on the drawing and the order confirmation.
How Do Copper Tube Dimensions Affect Performance
Outside Diameter and Wall Thickness
Outside diameter controls fitting compatibility, while wall thickness controls pressure capacity, weight, and heat transfer. A 3/8-inch tube with two different wall options can have different bend limits and flow area. We quote both values in millimeters and inches when a project serves multiple markets, reducing conversion errors during purchasing.
Pressure Ratings by Tube Size
Pressure rating changes with diameter, wall, temper, temperature, and code rules. Use the applicable design code rather than a generic internet chart. Our quotation team can provide dimensional data and test records, but the project engineer remains responsible for final code acceptance. That division of responsibility should be clear before production starts.
Thermal Conductivity and Heat Transfer
Copper transfers heat efficiently, but scale, oil film, and internal roughness reduce real performance. In a heat exchanger, a slightly thicker wall may improve durability while adding thermal resistance. Engineers should compare the full duty calculation, not just the material conductivity number.
Weight, Length and Shipping Factors
Coil length and bundle weight affect container loading, labor, and damage risk. Long coils reduce field joints but may need stronger reels or protective cartons. We plan export packing around the customer’s unloading equipment and warehouse limits, especially for distributors receiving mixed sizes.
Tolerance Requirements for Fabrication
Automatic bending, flaring, and expansion equipment needs stable diameter and ovality. If the tolerance is too loose, a machine may reject pieces that look acceptable by eye. Put critical dimensions and measurement locations in the drawing, then ask the manufacturer to report actual results from the inspection lot.
| Application | Recommended tube | Typical form | Key check |
|---|---|---|---|
| Residential HVAC | B280 soft or hard | Coil or straight | Bend radius and pressure |
| Commercial refrigeration | Clean dehydrated B280 | Coil or straight | Moisture and end caps |
| Heat exchanger | Seamless copper or alloy | Straight | Water chemistry and expansion |
| Process piping | Hard-drawn copper or alloy | Straight | Code, tolerance, joining |
| Hydraulic circuit | Precision copper tube | Straight | Pulsation and support |
How Do Copper Tube Types Compare by Temper
Annealed Copper Tubes
An annealed tube is heated and cooled under controlled conditions to reduce hardness. It bends easily and absorbs field movement, which helps in compact HVAC installations. The tradeoff is lower resistance to dents, so packaging and support matter. We use coil winding controls to avoid flat spots that would complicate flaring.
Half-Hard Copper Tubes
Half-hard tube gives installers more stiffness than soft coil while retaining some bending ability. It suits semi-fixed routes and service loops. The exact temper range varies by standard, so the purchase order should include the standard designation or mechanical limits.
Hard-Drawn Copper Tubes
The hard-drawn tube keeps its shape in straight runs and handles mechanical assembly well. It is common in factory-built equipment, headers, and visible pipework. Bending requires the correct tooling and radius; forcing a tight bend can thin the outer wall.
Temper Selection for Bending and Joining
Start with the installation method. Hand bending favors annealed coil; press tools and fixed supports favor hard-drawn straight tube. For brazing, clean ends and correct heat control matter more than temper alone. We often ship a short trial batch so an OEM can validate its forming settings before releasing a full order.
Which Copper Tube Sizes and Wall Thicknesses Should Buyers Choose
Common HVAC Copper Tube Sizes
Typical HVAC sizes include 1/4, 3/8, 1/2, 5/8, 3/4, and 7/8 inch outside diameter, with metric equivalents used in many markets. The right size depends on capacity, line length, refrigerant, and allowable pressure drop. Do not copy a size from a previous system without checking the new equipment data.
Refrigeration Tube Size Selection
Refrigeration designers balance velocity, oil return, pressure drop, and noise. Suction lines often need a larger diameter than liquid lines, but the final choice follows the equipment maker’s tables. We can supply cut lengths, coils, or mixed sizes when a distributor needs a project kit.
Heavy Wall Copper Tubes for Industry
Heavy-wall tube helps with pressure, vibration, and repeated maintenance. It also needs more heat during joining and may require different tooling. State the design pressure and support spacing so the supplier can quote a practical wall rather than simply the thickest option.
Sizing Tubes for Flow and Pressure Loss
Flow area changes with internal diameter, not outside diameter. A small wall increase can reduce area enough to affect pressure loss in a long run. Use the actual internal diameter in the calculation and include fittings, valves, and elevation where relevant.
When Custom Dimensions Make Sense
Custom sizes help when a heat exchanger, OEM manifold, or automated line needs a specific fit. They make sense when the annual volume offsets tooling and setup cost. We confirm a sample drawing, inspection points, and minimum order before starting a custom draw.
What Copper Tube Tests Should Buyers Request
Chemical Composition Testing
A heat analysis confirms copper content and alloying elements. Ask for the heat number on the certificate and on the bundle label. This link lets a quality team trace a nonconformance back to the melt and drawing records.
Tensile and Hardness Testing
Tensile strength, elongation, and hardness show whether the selected temper matches the standard. These tests also help an OEM set forming parameters. Results should identify the sampling lot instead of presenting one typical value for every shipment.
Eddy Current and Ultrasonic Inspection
Eddy-current inspection finds many surface and near-surface discontinuities at production speed. Ultrasonic inspection can support thicker-wall or special industrial requirements. The test method, calibration standard, and acceptance level should appear in the inspection plan.
Hydrostatic and Air Pressure Testing
Pressure testing verifies tube integrity under the agreed test conditions. Refrigeration buyers may use air or nitrogen testing after cleaning, while industrial projects may require hydrostatic testing. Confirm test pressure, hold time, and safety procedure before production.
Surface and Cleanliness Inspection
Inspect outside finish, straightness, end squareness, caps, and internal residue. Photos help when the buyer and supplier are in different countries. Nexnice records packing photos and batch labels before loading, giving the receiving team evidence if damage occurs in transit.
How Are Copper Tubes Manufactured
Copper Cathode Melting and Casting
Production begins with certified cathode or approved copper scrap. The melt is sampled for chemistry, deoxidized when required, and cast into billets. Clean charge material and stable furnace control set the foundation for tube quality.
Extrusion and Cold Drawing
Extrusion forms the first hollow shell. Cold drawing then reduces diameter and wall thickness through a sequence of dies. Each pass controls dimensional accuracy and work hardening. Lubricant selection and die condition influence surface finish.
Annealing and Temper Control
Controlled annealing restores ductility for soft coil or selected intermediate tempers. Furnace temperature, speed, and atmosphere affect grain structure and mechanical results. We verify the final temper through hardness and tensile sampling.
Degreasing and Internal Cleaning
The refrigeration tube receives degreasing, rinsing, drying, and end protection. The line must keep the internal surface free from oil, chips, and moisture. Clean handling after the wash is as important as the wash itself.
Cutting Capping and Final Packing
Automatic cutters produce repeatable lengths and square ends. Operators inspect diameter, ovality, surface, and labels before capping. Export bundles use separators, corner guards, and moisture-resistant wrapping based on the route and customer warehouse.
Factory Experience Avoiding Failures in Copper Tube Projects
A Refrigeration Project With Moisture Contamination
On one export order, a buyer reported repeated filter-drier replacement after commissioning. The tube specification was correct, but open ends sat uncapped in a humid warehouse for several days. We changed the packing instruction to sealed caps and added a receiving checklist. The next shipment reached installation with dry, clean interiors and the commissioning team reported no repeat blockage.
How Wall Thickness Solved Vibration Cracks
A rooftop-unit customer saw cracks near a compressor discharge bend after several months. The line vibrated against a bracket, and the original thin wall had little fatigue margin. We reviewed support spacing, moved the bracket, and supplied a heavier wall for the short discharge section. The customer’s follow-up inspection after a full cooling season found no new cracks.
Reducing Installation Time With Coil Length Planning
A distributor serving small contractors used standard 15-meter coils for every job. Many installations needed only 8 to 10 meters, leaving offcuts and extra joints. We helped create two coil lengths matched to the common room layouts. The distributor reported fewer offcuts and a faster pick-and-pack process because installers reached for the correct coil first.
Lessons From Export Packaging Damage
A mixed-size container arrived with dented straight tubes near the door. The bundles had shifted under braking because the pallet straps did not match the load height. We changed to cross straps, end boards, and a denser pallet pattern. The revised packing passed a route trial and reduced visible dents in later deliveries.
How Does Nexnice Support Copper Tube Buyers
Application-Based Product Recommendations
We begin with the system, medium size range, temperature, standard, and delivery form. That conversation usually takes less than one page, yet it prevents the common mistake of comparing two products that only share an outside diameter. Our team flags missing data before the quotation becomes a production problem. If the purchase includes insulation as well as tubing, review our insulated copper line sets and send the required tube pair, route length, and insulation specification with the inquiry.
Custom Sizes and Production Batches
Nexnice supports OEM drawings, mixed-size orders, and repeat batches with retained samples. We confirm tooling, MOQ, tolerance, and lead time in writing. A first-article sample gives the buyer a chance to test bending, flaring, expansion, or brazing before larger production.
Inspection Before Shipment
Our inspection package can include chemistry, dimensions, mechanical results, eddy current, pressure testing, cleanliness records, and packing photos. The exact plan follows the purchase order and project standard. Traceable labels connect each bundle to its production and inspection records.
Export Packaging and Documentation
We pack coils and straight lengths for container handling, warehouse storage, and final installation. Commercial invoices, packing lists, mill certificates, and inspection reports use matching descriptions and batch numbers. Clear paperwork helps a distributor release goods without repeated questions.
Support for Distributors and OEM Projects
Distributors need stable dimensions and predictable stock; OEMs need repeatability and engineering response. We keep a practical feedback loop for both. When a customer reports a forming issue or a transit mark, we review the actual batch, photos, and process records before suggesting a change.
Copper Tube Type Selection Checklist
- Confirm the application, fluid, pressure, temperature, and code.
- Define outside diameter, wall thickness, alloy, and temper.
- Choose coil or straight length and state cut-length tolerance.
- Specify cleanliness, dehydration, caps, nitrogen, and packaging.
- Request chemistry, mechanical, dimensional, and NDT records.
- Agree on MOQ, sample approval, lead time, Incoterms, and claim process.
Summary: Choosing the Right Copper Tube Type
The right copper tube is a system decision. Start with the working medium and design conditions, then select alloy, diameter, wall, temper, form, cleanliness, standard, and tests. Buyers who share a complete specification give the manufacturer a fair basis for price and lead-time comparison. From our factory side, a short technical review before the order usually costs less than one failed installation. Nexnice can review your drawing, recommend a tube type, and prepare a traceable quotation for HVAC, refrigeration, or industrial service.
FAQ
What is the best copper tube for HVAC systems?
ASTM B280 soft or hard copper tube is usually suitable for HVAC, provided the diameter, wall thickness, temper, and pressure rating match the equipment design. Annealed coils simplify field bending, while hard-drawn lengths suit fixed factory routing.
What is ASTM B280 copper tube used for?
ASTM B280 covers seamless copper tube for air-conditioning and refrigeration field service. Buyers still need to specify size, wall, temper, cleanliness, dehydration, end caps, and packaging because the standard alone does not define every delivery detail.
What is the difference between soft and hard copper tube?
Soft annealed tube bends easily and ships in coils, while hard-drawn tube stays straight and resists dents. Select soft tube for complex field routes and hard tube for supported runs, automated forming, or factory assemblies with fixed geometry.
Which copper tube is suitable for refrigeration?
Use clean, dehydrated refrigeration tube made to ASTM B280 or an equivalent standard. Capped ends and moisture-resistant packing keep the interior dry during storage and freight, reducing acid, blockage, and compressor reliability problems after commissioning.
How do I choose copper tube wall thickness?
Base wall thickness on refrigerant or fluid pressure, temperature, diameter, vibration, code rules, and joining method. A supplier can provide dimensional and test data, but the project engineer must approve the final pressure design and safety margin.
What documents should a copper tube supplier provide?
Request a certificate with heat number, chemistry, dimensions, mechanical results, inspection method, and packing references. Matching numbers on certificates, labels, and invoices make receiving checks faster and support traceability if a project issue appears later.
Can copper tube manufacturers produce custom sizes?
Yes, many manufacturers can draw custom diameters or wall thicknesses after reviewing annual volume, tooling cost, tolerance, and sample approval. Custom sizes work best for OEM and heat-exchanger programs with repeat demand and controlled drawings.
How should refrigeration copper tubes be packaged?
Keep both ends sealed with clean caps, protect coils from crushing, and use dry, covered cartons or pallets. Store the shipment off the floor and open caps only during cutting so moisture and dust do not enter the tube.
