Copper Return Bend C × C

Product Overview

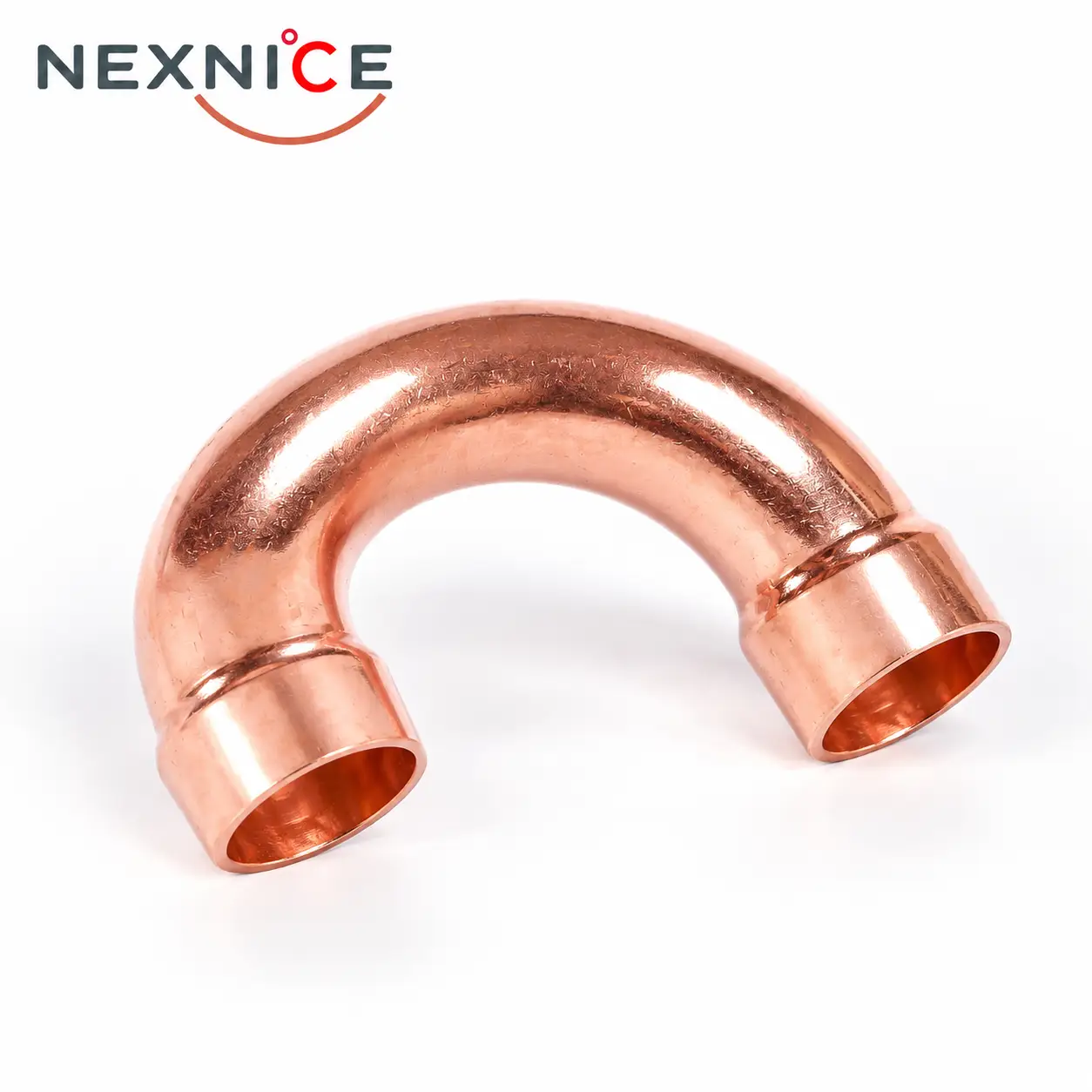

Nexnice copper return bends connect tube sections where the route must reverse direction. The curved body places the two ends side by side, allowing a return path within the assembly’s specified dimensions.

Center-to-center spacing is a key selection dimension. Check it against the connection size, bend envelope, and end lengths, especially when the fitting connects a fixed arrangement of parallel tubes.

Product Features and Options

A Defined Return Path

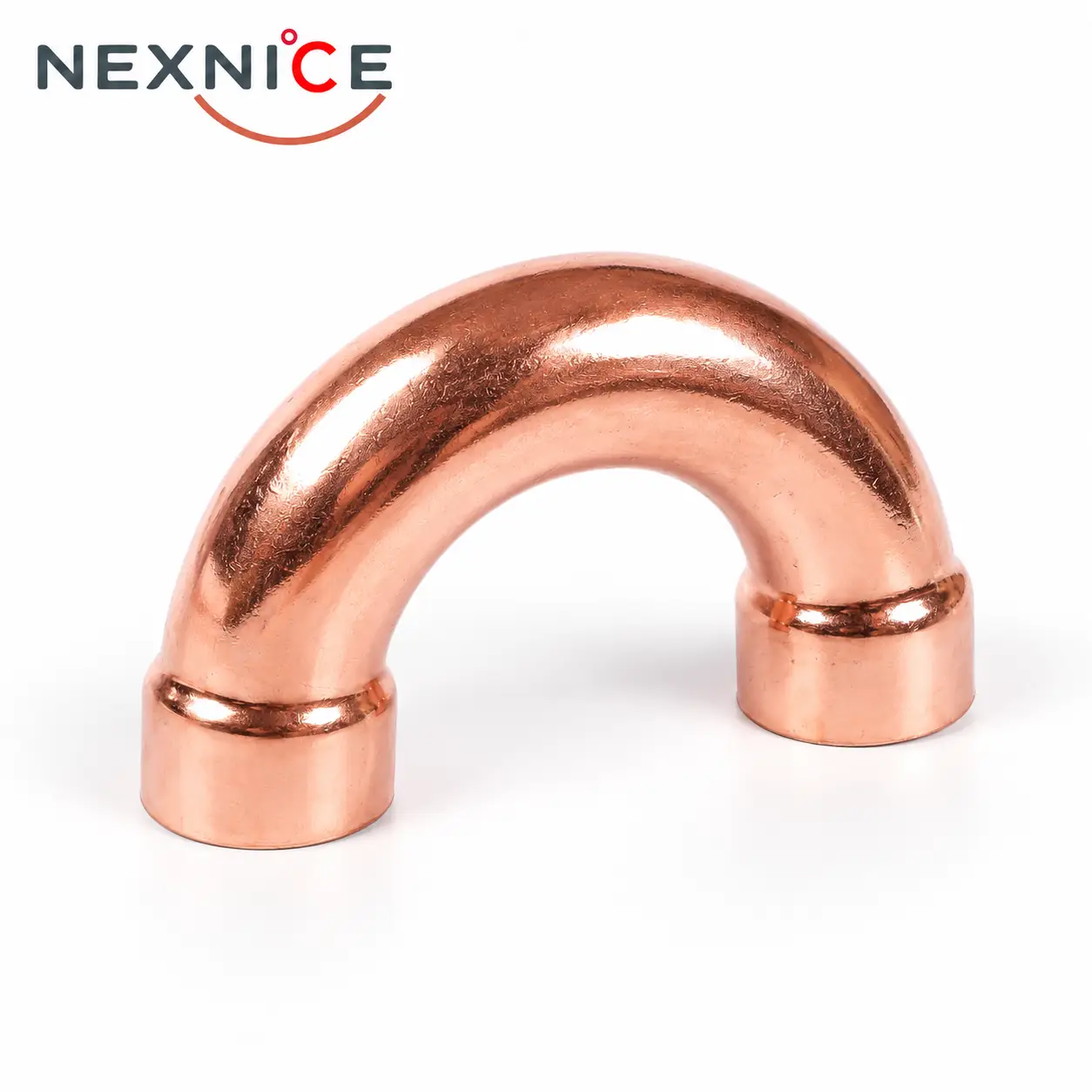

The 180-degree body changes the route back toward its starting direction. Identify the required orientation on the assembly drawing where nearby parts limit available space.

Parallel-End Spacing

Measure the required center spacing between the connected tubes. Matching OD alone does not establish whether the two ends will align with the assembly.

Cup and End Dimensions

Confirm cup fit, insertion requirements, and straight-end lengths with the tube specification. The connection detail must correspond to the exact return-bend series being ordered.

Technical Specifications

Technical item	Product or order detail
Connection arrangement	C × C
Return geometry	180°; center spacing and end lengths
Dimensional selection	Actual tube OD and agreed product drawing

Confirm the exact variant, numerical sizes, and product documentation with the quotation.

Application and Selection

Use the return bend for an assembly whose drawing calls for a defined reversal in the tube route. Include the parallel-tube spacing and surrounding clearance when requesting the component.

If a catalog illustration uses a different connection technology, confirm the dimensional correspondence before adopting its table for this cup-ended product.
