Depth Overview of Air Conditioner Insulated Copper Tube

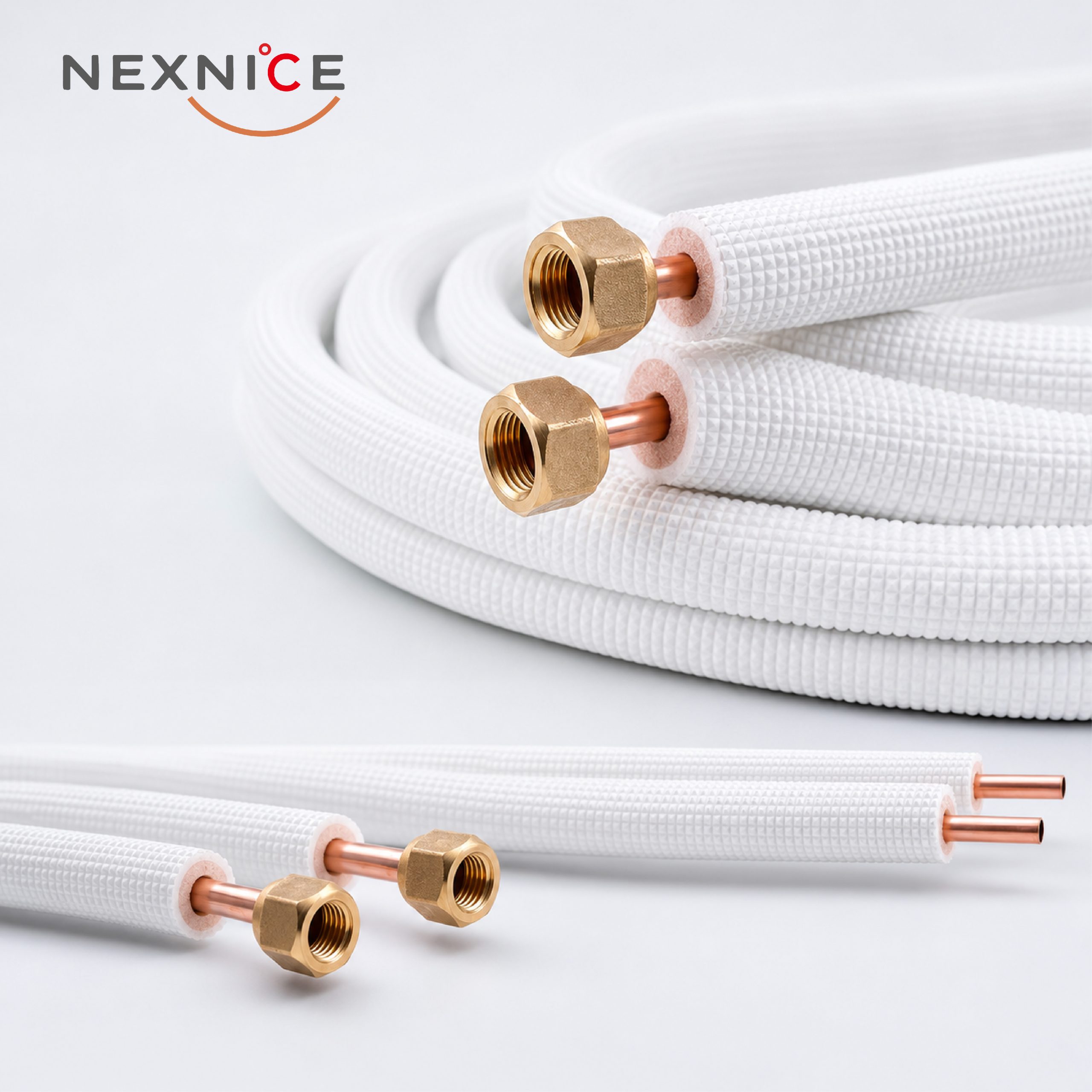

Air Conditioner Insulated Copper Tube

The air conditioning (AC) system is comprised of a variety of important components, each of which serves an essential function in ensuring the smooth operation of the whole system. One of the most important components is the Insulated Copper Tube utilized for refrigerant transport in the cooling system. Understanding the functions, forms, and benefits of insulated copper tube will help consumers and professionals make educated decisions when constructing and maintaining their AC unit. This article offers a thorough review of air conditioners copper tubes that are insulated and their design, benefits, and applications.

What is an Insulated Copper Tube?

An copper tube that is insulated is a form of copper tubing and is typically utilized to cool air systems to facilitate the transport of refrigerants (coolants). It is lined with an insulating substance to keep the temperature and the efficiency of energy. The insulating layer assists to stop heat gain or loss, and ensures that the refrigerant remains at the right temperature when shifting between the various elements of an AC system.

They are typically included in the refrigerant line inside the air conditioning unit, and specifically those that are the liquid line and suction line. The liquid line transports the refrigerant through the condenser tube to evaporator coil, and the suction line carries the refrigerant gas to the compressor.

Types of Insulation Materials

•  Foam Rubber foam is among the most popular types due to due to its flexibility, ease of installation and outstanding heat insulation.
•  Polyethylene Foam foam is lightweight and impervious to water Polyethylene foam is commonly employed to make copper pipe insulation.
•  Elastomeric Rubber kind of rubber is renowned for its elasticity and toughness, which is ideal in extreme high or low temperatures.
•  Fiberglass It’s widely used in commercial applications although, despite being it is basic and useful, they need a barrier to vapor in order to keep moisture out.

Guide To Copper Pipe For Air Conditioning

Copper pipes are among the elements required by the air conditioner and cooling systems. The tube is an avenue for refrigerant to move between the system components and stop it from flowing into the air. Dimensions, the layout of mounting, and fittings must be correct to ensure that the system is functioning effectively.

When installing, it is essential to keep dust, water, and other contaminants out of the system. Foreign objects can impact the system’s performance and could cause damage to specific components. During the manufacturing process of copper pipes, the interior of the pipe is clean and dried and the ends of it are then sealed so it is not damaged. It is important to ensure that the refrigerant that you’ll be employing will not interact with the copper. The refrigerant ammonia reacts with copper and is not recommended for use. Instead stainless steel tube types should be used.

Type of Insulated copper tube

There are two kinds of tubes.

1. Hard-Drawn Copper Tubes

Copper tubes made of hard-drawn are strong and don’t bend easily. This type of insulated copper tube is often used for applications where the pipe must keep its shape and not be manipulated easily. The most common use of hard-drawn tubing is in refrigeration systems, construction, and plumbing, where bends and complicated shapes are not required. Accessories like elbows and fittings are utilized to create the proper arrangement for installation.

• Lengths & Sizes:
  • The standard lengths usually vary between 10 to 20 feet..
  • Available in various sizes outside diameters (OD) available, such as three-quarters”, 1/2″, 5/8″, 3/4″, 7/8″, 1-1/8″, 3/8″, 1-5/8″, 1-1/4″, and 2-5/8″.
  • The tubes can be found in three primary wall thicknesses: Type K , Type L , and Type M .
    • Type K The thickest wall that is used most often for high-pressure uses such as refrigeration and air conditioning.
    • Type L: The second thickest one, suited for applications with lower pressure.
    • Type M The tiniest suitable for applications with low pressure, but could not be suitable for high-pressure systems.
• Applications Hard-drawn copper is used in a variety of applications, including plumbing lines, gas lines, HVAC (heating ventilation and air conditioning) systems, and other critical piping systems that require endurance and resistance to pressure.
• Pressure Handling For systems in which high-pressure resistance is required for example, refrigeration systems copper tubes with a thicker wall (Type K) are recommended to avoid the rupture of pressure.

2. Soft Copper Tubes

The soft copper tube is a lot more flexible and are able to be bent with a hand or with the aid of the bent tool. They are commonly utilized in areas which require flex, like refrigerant lines, or in installations in which the tube has to travel around obstacles or in curvatures.

• Lengths & Sizes:
  • Soft copper is generally offered in coil form, with lengths around 25 feet or 50 feet.
  • The sizes of the available outside diameters vary between 1/8″ up to 1-3/8″.
    Applications Soft copper is utilized in air conditioning systems, refrigeration equipment, and for making easy bends for plumbing installations.
• ACR (Air Conditioning and Refrigeration) Labeling Soft copper that is used in refrigeration is typically identified with an ACR designation to indicate that it is designed specifically specially for refrigeration lines and systems for handling refrigerant or air conditioning fluids.
• Manufacturing Process The tubing made of soft copper undergoes a thorough clean-up process to get rid of any dirt. It is then dehydrated in order to eliminate the moisture that can cause corrosion. It is then pressure-treated with nitrogen and capped to ensure that the tubing remains dry until it is ready for installation.

Insulation and Precautions

Insulation of Copper Tubing

When it comes to the refrigeration and cooling systems copper tubing is typically protected from heat transfer from the surrounding environment. Insulation helps to:

• Stop heat Gain Insulation stops the refrigerant in the tube from absorbing heat from the surroundings that could decrease the effectiveness of the system.
• Stop condensation by insulating your insulated copper tube, it reduces the possibility of condensation developing on the exterior of the tube because of temperatures that differ between the refrigerant in the tubing and ambient air.The tubing is typically insulated in the areas in between the compressor and the compressor primarily on the low-pressure end of the system.

Precautions During Handling

• cutting The Copper Tube: When cutting copper tubing, it is essential to employ the proper equipment, such as a tube cutter, in order to assure a straight, clean cut. After cutting, you should take out all sharp edges (sharp edges) from the inside in the tube. Burrs left behind can disrupt the refrigerant’s flow and decrease the efficiency of the system through blockages or causing an air turbulence within the tube.
• The Bending of Copper Tubes It is only recommended that flexible copper tubes are made to bend. For copper tubes that are drawn hard the bend is not recommended. To bend copper tubing that is soft without harming it the tube, it is recommended to use a bent spring is frequently used to stop collapsing or kinking of the tube. This tool allows gentle, controlled bends that are not being a nuisance to the tube or causing it to flatten.
• Brazing and Soldering Connectors in which two copper tubing pieces are joined with soldering or brazing, it is typically needed. It is essential to follow the manufacturer’s guidelines and utilize the appropriate material (flux and solder/braze alloy) to make a secure, leak-proof connection.
  • Training is vital when soldering or brazing copper pipes as incorrect methods can result in leaks, weak joints or even failure of the whole system.
  • The safety precautions are required in working with hot machinery, which includes the wearing of eye protection and heat-resistant gloves and making sure that there is adequate ventilation in order to avoid inhalation of the fumes.
• Annulling Procedure When using with hard copper, the pipe might require to be annexed (a method of heating and slow cools the tubing) to enable it to bend. It is essential to evenly heat the tube by transferring your flame in a circular motion back and forward throughout the tube. It’s important to heat only one section at one period of time (roughly 1 foot worth of tube). Concentrating the heat in a single area can cause the tube become weak or to cause it to burn.
  • Ventilation is crucial during the annealing process since it may release gaseous emissions that could cause harm in the event of inhalation. Be sure to work in a ventilated area and be careful not to inhale the fumes that are produced by heated copper.

Safety Considerations

• Protective Equipment Be sure to wear protective glasses when cutting or bending, brazing as well as soldering copper tube. The tiny particles in the air, hot substances, and splashes of flux, or solder that is molten can cause injuries.
• Ventilation A good ventilation system is vital, particularly when soldering or brazing, since fumes from flux or solder may be harmful in your body. Be sure to work in areas that are well ventilated or employ exhaust fans and a respirator when needed.
• Tool Use Utilize the appropriate tools for the job at hand: tube cutters to cut and bending springs to bend, and brazing torches for joining. Unsuitable tools can lead to inadequate performance, leaks and even failure of the system.

If you are aware of the various varieties of tubes made from copper and adhering to the proper handling and insulation and safety precautions You can guarantee the long-term durability and effectiveness of your equipment while also ensuring a safe working area.

Copper Piping For Air Conditioning Excellence

The majority of air conditioners make use of two kinds of pipes: copper or aluminium. Pipes made of aluminum are slowly being replaced by copper; modern air conditioners are made of copper.

Air conditioners are comprised of three major components comprising an evaporating unit, a compressor and condenser. The evaporating coil is located inside the unit, and it’s compressor and condenser are outside. Window units include all the components within one unit.

Air conditioners absorb heat from the room through evaporating coils. They are cool by refrigerant moving through them. The refrigerant that has been cooled is made into a hot, liquid, before being pumped through condenser pipes, allowing it to lose the majority part of the energy. The refrigerant is returned to its original temperature via an high-pressure valve and the process repeats until the room is at the temperature you want to reach.

Components of air conditioning are linked to each other by copper or aluminium pipe to form a closed loop. Pipes that are not of good quality can lead to leaks and inadequate cooling and hold excessive heat. Copper is more effective at preventing corrosion and the oxidation process, which means air conditioners with a longer life. Copper pipes cool quicker because of their lower specific heat capacity, whereas aluminum pipes use more energy and are less efficient in cooling.

Key Benefits of Air Conditioner Insulated Copper Tube

Insulated copper tube in air conditioning systems offers several advantages that significantly enhance the performance, efficiency, and durability of the system. Copper tubes are integral to the refrigeration process, and when they are properly insulated, they help maintain the efficiency of the cooling system while minimizing potential issues that could arise due to temperature fluctuations, external factors, or system wear. Let’s delve into the key benefits of using insulated copper tubes for air conditioning systems.

1. Enhanced Energy Efficiency

The most important benefit of insulated copper tube is the improvement in energy efficiency. Without insulation, copper tubes can absorb heat from the surrounding environment, which can cause the refrigerant inside to lose its cooling capacity and reduce the overall efficiency of the air conditioning system.

• Prevents Heat Gain: Insulation prevents the refrigerant inside the copper pipes from gaining heat from the surrounding environment. This is crucial because if the refrigerant warms up before it reaches the evaporator, the system will have to work harder to achieve the desired indoor temperature, using more energy in the process.
• Maintains Proper Temperature: Insulation helps keep the refrigerant at the right temperature as it moves through the system. With insulation in place, the cooling system requires less energy to maintain the desired temperature, leading to reduced electricity consumption and lower operational costs.

In essence, insulated copper tube reduce the workload of the AC system, resulting in long-term savings on energy bills and improved overall efficiency.

2. Improved System Performance

Air conditioners depend on the efficiency of refrigerant flow to regulate room temperatures. When the copper tubes are insulated, they help maintain the refrigerant at the correct temperature as it circulates through the system.

• Better Heat Exchange: With insulation, the refrigerant can maintain the desired thermal characteristics, which allows the evaporator coil and condenser to work more effectively. This translates to faster cooling, better temperature regulation, and quicker response times from the AC system.
• Consistent Cooling: Insulation stabilizes the temperature of the refrigerant as it moves through the system, ensuring that the AC unit performs optimally, even in environments with fluctuating outside temperatures.

This improves the overall system performance, ensuring that the air conditioner cools the room efficiently and consistently while avoiding unnecessary strain on the unit.

3. Reduction of Condensation

Condensation on copper pipes is a common issue, especially in humid environments. When cold refrigerant passes through the copper pipes, the surrounding warm air can cause moisture to condense on the exterior of the tubes.

• Prevents Water Damage: Insulation acts as a barrier to prevent condensation by maintaining a consistent temperature around the copper pipes. This helps reduce the risk of water damage to the surrounding walls, floors, or other components of the air conditioning system.
• Reduces Mold and Mildew: By preventing condensation, insulation also reduces the chances of mold and mildew growth around the pipes, improving the indoor air quality and preventing potential health issues caused by excess moisture.

4. Noise Reduction

Air conditioning systems sometimes generate noise from the refrigerant flowing through the insulated copper tube. The movement of the refrigerant through the pipes, combined with vibrations caused by the compressor, can create unwanted noise that may be heard in the living or working space.

• Dampens Vibrations: The insulating material around the copper pipes absorbs and dampens these vibrations, preventing them from being transmitted through the system and into the surrounding environment.
• Quieter Operation: With insulation, the pipes are less likely to produce loud noises, making the operation of the air conditioner quieter and more comfortable for the users.

This benefit is particularly important for residential buildings or areas where noise is a concern, such as offices or hospitals.

5. Protection Against External Damage

Copper tubes, when exposed to external elements, are vulnerable to physical damage, such as dents or abrasions, as well as environmental factors like UV radiation, moisture, and extreme temperatures.

• UV Protection: Insulating materials often come with a UV-resistant coating or are made from materials that are inherently UV-resistant. This protects the copper pipes from degrading when exposed to sunlight, which could otherwise cause the pipes to corrode or weaken over time.
• Physical Protection: The insulation also acts as a protective layer, guarding the copper tubing from physical impacts and damage during installation or maintenance, as well as preventing damage due to external factors like weather, debris, or accidental bumps.

In outdoor installations, such as in rooftop units or external compressors, insulation helps safeguard the copper pipes from harsh weather conditions, extending the life of the system.

6. Extended Lifespan of the System

Proper insulation around copper tubes not only ensures the system’s efficiency and performance but also contributes to the longevity of the entire air conditioning unit.

• Prevents Corrosion: Insulation helps protect copper pipes from exposure to moisture and environmental pollutants that could lead to corrosion. Without this protection, copper tubes are at risk of rusting, which can compromise their structural integrity and lead to leaks or system failures.
• Reduces Wear and Tear: By reducing the temperature fluctuations and minimizing strain on the system components, insulation helps prevent premature wear and tear on the system. As a result, your air conditioning unit is less likely to experience breakdowns or require frequent repairs.

This leads to longer operational life, fewer maintenance needs, and a better return on investment for the air conditioning system.

7. Environmental Benefits

Energy-efficient systems are environmentally friendly because they reduce the consumption of electricity, which in turn lowers carbon emissions associated with energy production.

• Lower Energy Consumption: As mentioned earlier, insulation reduces energy consumption, which not only saves money but also reduces the environmental impact of operating the AC unit.
• Sustainability: By extending the lifespan of the system and minimizing the need for repairs, insulation reduces waste and helps create a more sustainable solution for cooling needs.

8. Cost-Effectiveness

While adding insulation to copper pipes may involve an initial investment, the long-term savings far outweigh the cost.

• Reduced Cooling Costs: Insulated pipes contribute to better system efficiency, leading to lower cooling costs over time. This reduction in energy consumption can result in significant savings on electricity bills.
• Fewer Maintenance Costs: Since insulation prevents damage to the pipes and reduces wear on the system, it can help avoid costly repairs or premature replacements of components.

The cost-effectiveness of using insulated copper tubes becomes evident when factoring in both energy savings and longer system lifespan.

Common Mistakes to Avoid During Insulation

Although insulating copper pipes fairly simple, a few errors can diminish the effectiveness that the pipe is insulated. The following are the most important things to be aware of:

• Using the Wrong Insulation Material Some insulation materials aren’t suitable for pipes that are air-conditioned. Some might not have the necessary thermal resistance and others might not be suitable for outdoor use. Materials that are actually used in HVAC should be carefully selected.
• Leaving Gaps or Compressing Insulation In insulation, gaps will allow air to enter that can decrease the effectiveness of insulation. In addition insulation that is squeezed too tight reduces it’s thermal resistance. Always ensure that the insulation is snug and not compressed fitting.
• Skipping UV Protection for Outdoor Pipes Outside insulation exposed to sunlight should be UV-resistant. Intense UV radiation that is emitted by sunlight can degrade in insulation over time. This can lead to which causes them to break and decrease their effectiveness. The insulation must have UV protection, or a UV-resistant coating should be put on.

Frequently Asked Questions (FAQs)

1. Why is copper used in air conditioning systems?

Copper is highly valued in air conditioning systems due to its superior thermal conductivity, which allows for efficient heat exchange. Additionally, copper’s resistance to corrosion and durability under high pressure make it an ideal material for refrigerant transportation. Its malleability also makes it easy to shape into required forms, contributing to the longevity and reliability of HVAC systems.

2. Why is insulation important for copper pipes in HVAC systems?

Insulation is crucial because it prevents unwanted heat exchange between the copper pipes and the surrounding environment, thus maintaining the refrigerant’s temperature. This enhances system efficiency, reduces energy consumption, and extends the life of the pipes by protecting them from external damage such as UV rays, moisture, and physical wear.

3. Can I install copper pipe insulation myself?

Yes, it’s possible to install insulation yourself if you have the correct tools and materials. However, it’s important to avoid common mistakes, such as leaving gaps or compressing the insulation too tightly, which can reduce its effectiveness. Properly installed insulation ensures the maximum benefit for system efficiency and longevity.

4. What is the difference between hard-drawn and soft copper pipes?

• Hard-Drawn Copper Pipes: These are rigid pipes used where flexibility isn’t required. They come in standard lengths and are suited for installations that require straight lines or fittings.
• Soft Copper Pipes: These pipes are flexible, making them ideal for installations where bends are needed. They are often coiled and are easier to manipulate for complex piping layouts.

5. How does insulation improve energy efficiency?

Insulation minimizes heat loss or gain by maintaining the refrigerant’s temperature within the system. This reduces the amount of energy required to cool or heat the refrigerant, resulting in lower energy consumption, faster cooling, and reduced operational costs.
